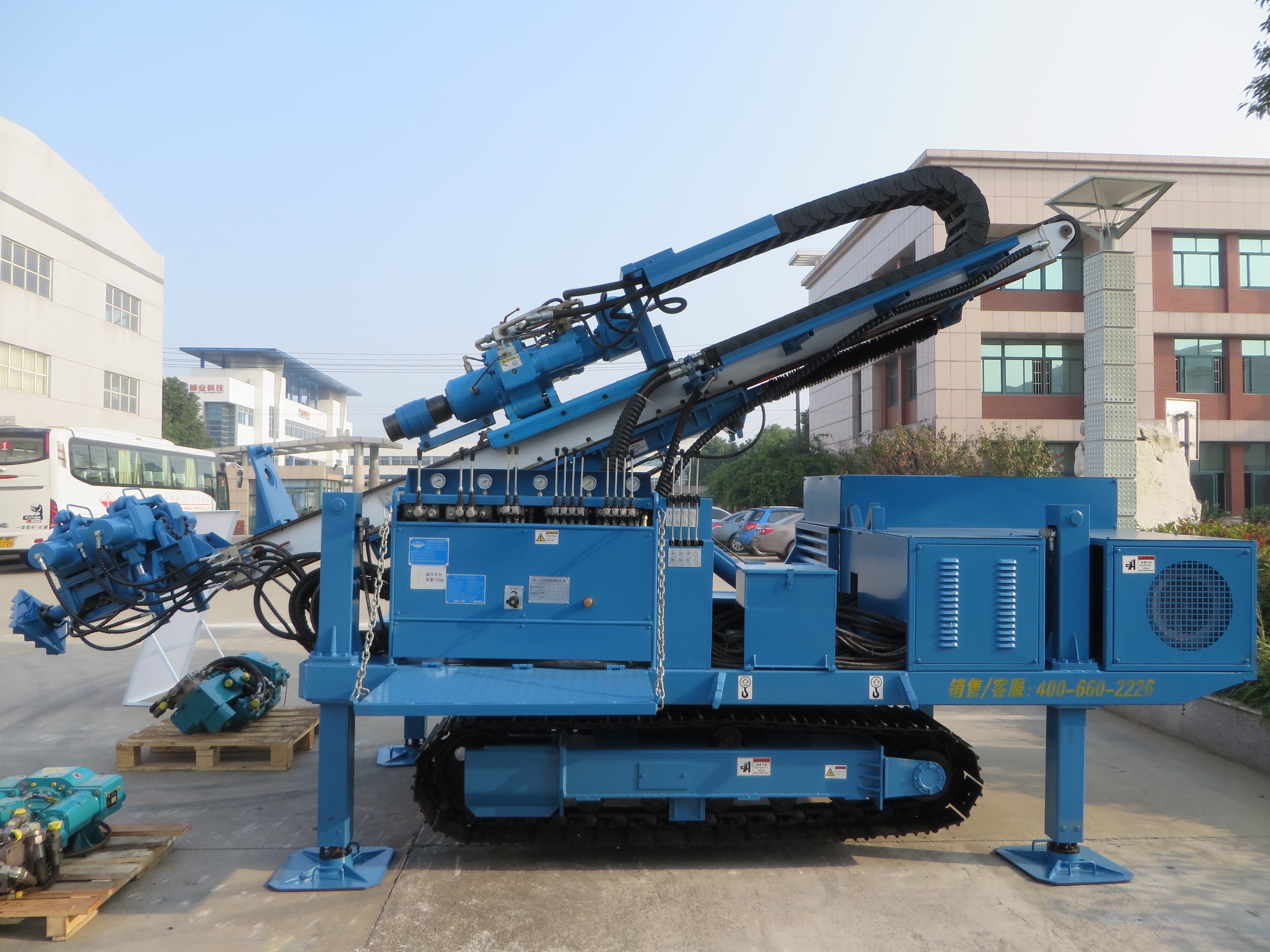

MDL-C160 High Rotary Speed Complex Stratums Top Head Drive Crawler Mounted Drilling Rig
Specifications:
| Hole depth | 130-170m |
| Rod dia. | 150-250mm |
| Hole angle | 0-90° |
| Output rotary speed of power head | 8, 15, 25,30,50, 65, 80r/min |
| Stroke of power head | 3000mm |
| Output torque of power head | 10000N.m |
| Impact power | 400-600N.m |
| Impact frequency | 1500-2600min-l |
| Lifting force | 78KN |
| Feeding force | 40KN |
| Stroke of slide frame | 1500mm |
| Power | Electric motor: | 55+18.5+3KW |
| Weight | 7000KG |
| Dimensions (L×W×H) | 5400×2200×2200mm |
Quick Detail:
1. The top driven anchor drill rig is stable,high effiency and can be used for complex stratums,such as sand gravel layer, gravel layer, sand stone soil, sand.
2. The top of the power head can vibrate with big power without DTH hammer or air compressor.
3. The drilling tools from the outer to the inner and all involved in the transmission of the impact power, it is not easy to happen the hole accidents such as drill sticking.
4. MDL-C160 is applicable to a wide-range of strata with big torque, high rotary speed, and big power.When meeting those fragile holes , the top drive drill equipment has a very high penetration rate and drilling efficiency.
5. Especially when the moisture content of local layer is too high to use DTH hammer when work, this top head drive drill rig is the only choice.
Description:
1. MDL-C160 is top driven anchor drilling rig imported from Taiwan,so it can drill in a compact way.
2. MDL-C160is applicable to a wide-range of strata with big torque, high rotary speed, and big power.
3. When meeting those fragile holes such as sand gravel layer, gravel layer, sand stone soil, sand hole, the top drive drill equipment has a very high penetration rate and drilling efficiency. Especially when the moisture content of local layer is too high to use DTH hammer when work, this top head drive drill rig is the only choice.
4. This top head drive drill rig adopts variable hydraulic system and can vibrate with big power without DTH hammer or air compressor.The drilling tools from the outer to the inner and all involved in the transmission of the impact power, it is not easy to happen the hole accidents such as drill sticking.
5. This top drive drill equipment is applicable to anchor hole, such as urban foundation pit supporting . And is mainly applied to construction engineering supporting, slope supporting,all kinds of guide hole, tunnel and pipe shed engineering, etc.
Applications:
1. Anchor hole, such as urban foundation pit supporting .
2. It is mainly applied to construction engineering supporting, slope supporting,all kinds of guide hole, tunnel and pipe shed engineering, etc.
